Redeploying an Azure Sensor Using the Same IP

​

Step 1. Identify the Sensor in the USM Anywhere UI

1. Log in to the USM Anywhere console.
2. Go to Data Sources > Sensors.

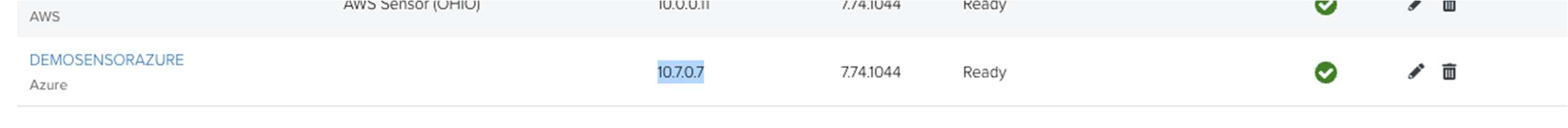

3. Identify the sensor you want to redeploy.

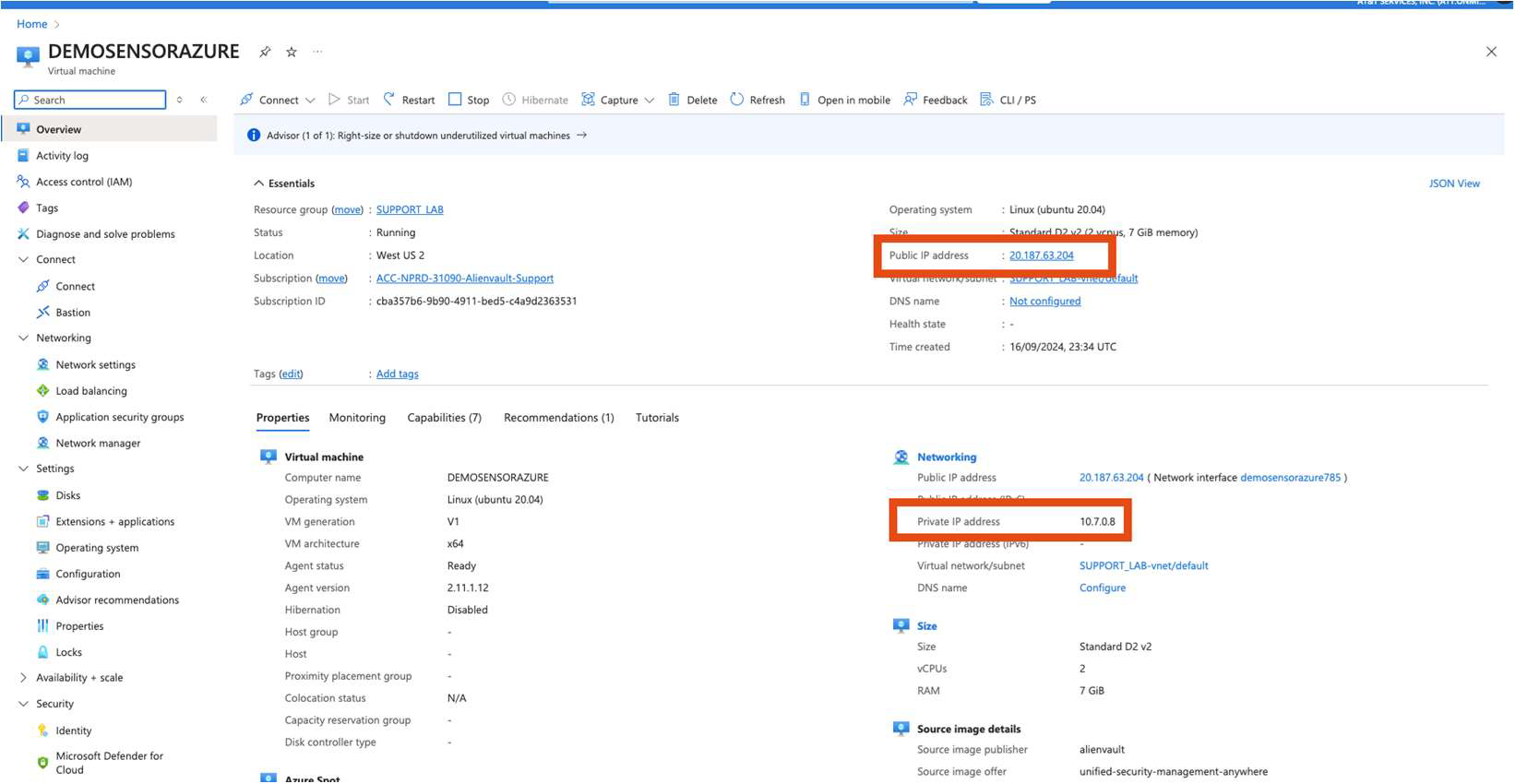

4. Record its public and private IP addresses for later use.

​

Step 2. Gather Backup Information from the Sensor CLI

1. Connect to the sensor console using SSH or Azure Serial Console.

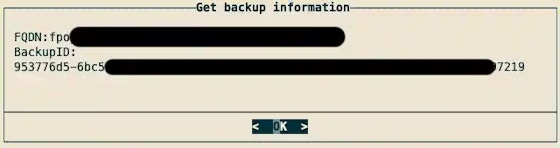

2. From the Maintenance menu, select Get Backup Information and press Enter.
3. Copy the FQDN and BackupID, and save them for later use.

​

Step 3. Delete the Existing Sensor VM While Preserve Networking Resources

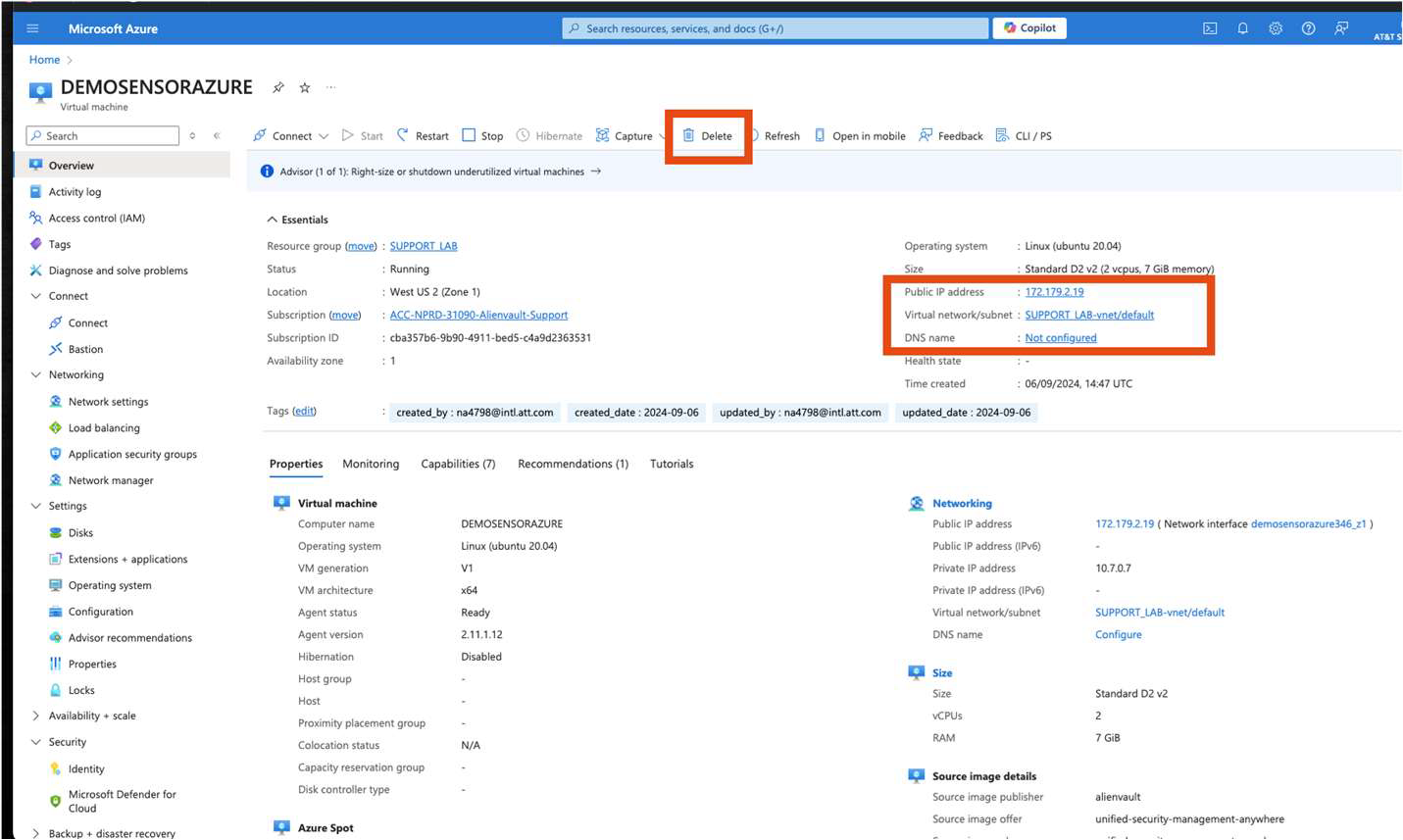

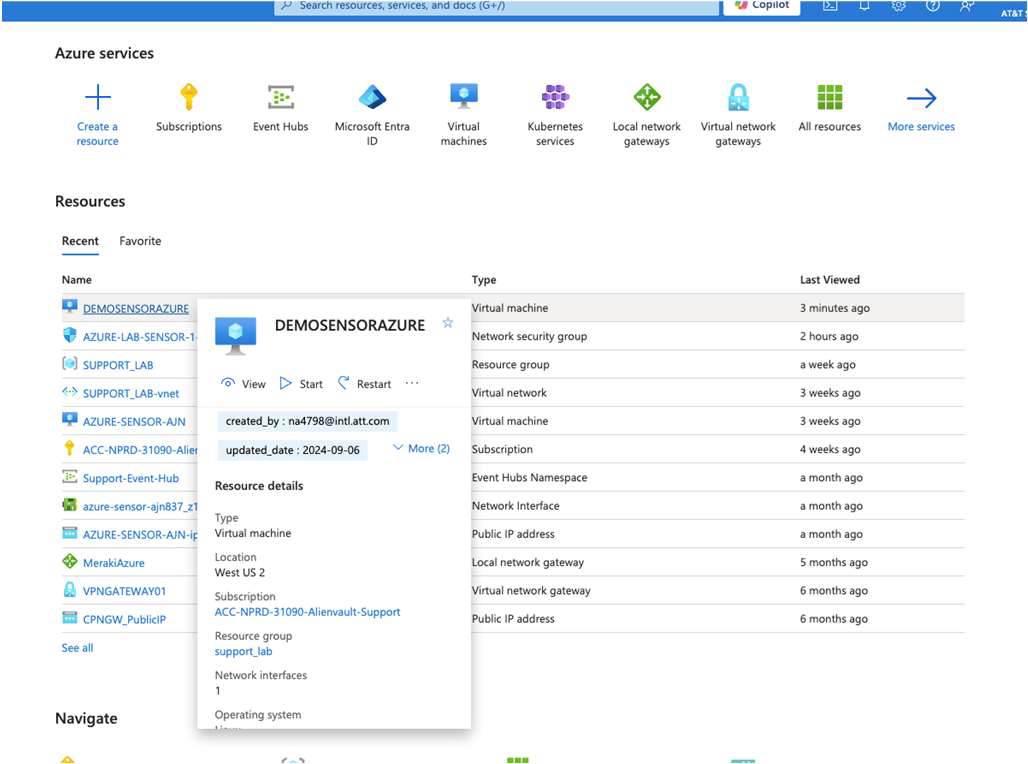

1. In the Azure Portal, open the existing sensor Virtual Machine.
2. Note the following configuration details:
   • Resource group
   • Virtual network/Subnet
   • Network Security Group (NSG)
   • Network Interface (NIC)
   • Public IP Address

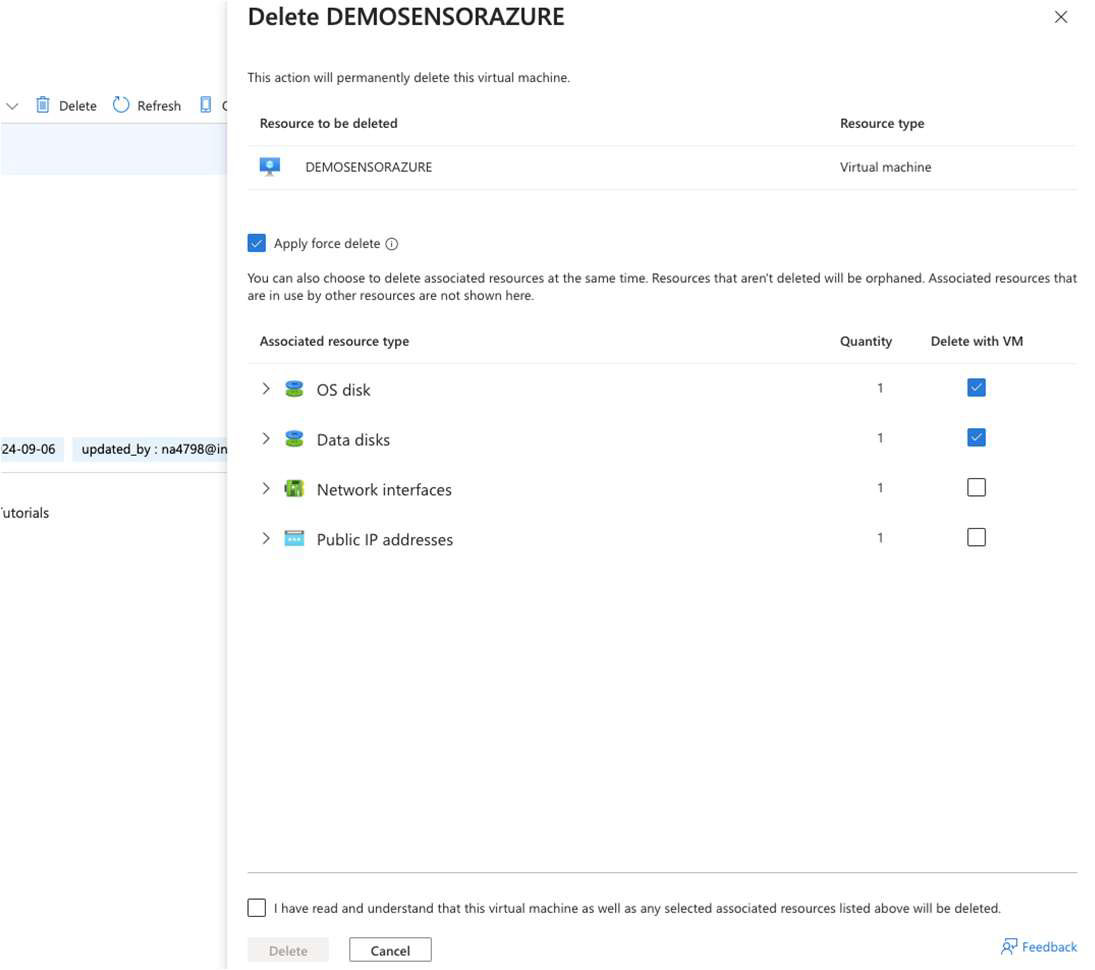

3. Delete the VM and its OS/Data disks, but do not delete:
   • The Network Interface (NIC)
   • The Public IP Address resource


​

Step 4. Deploy a New Azure Sensor VM

1. Go to the USM Anywhere Sensor Downloads page and select the download link of the Azure Sensor.
2. On the page, review the details of the license and click Create. This takes you to the Create a virtual machine page, which guides you through the steps for deploying the USM Anywhere Sensor VM.

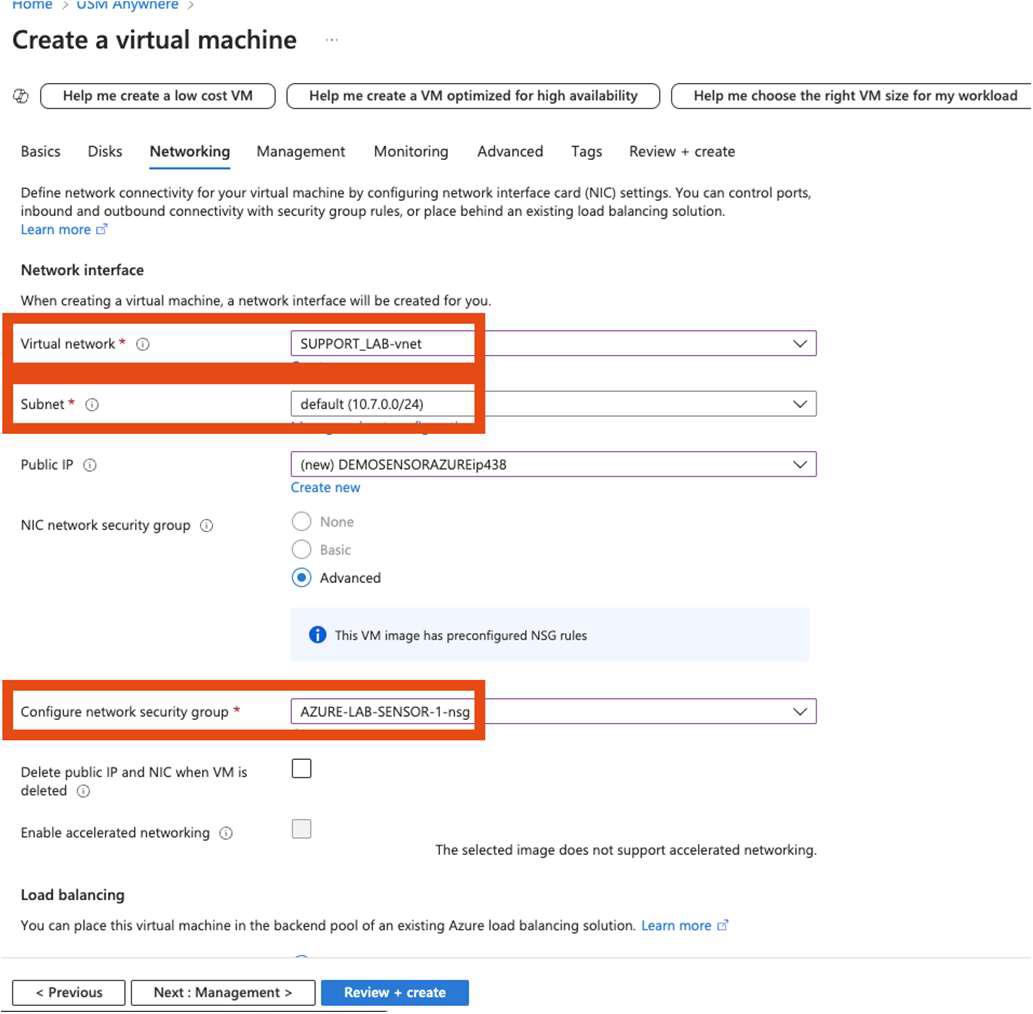

3. During configuration:
   • Assign the same Virtual Network and Subnet as the original sensor.
   • Reuse the same Security Group settings.

   Important: LevelBlue recommends using sysadmin as the username. If you use a different name, you will need to “sudo up” to access the sensor console. See Checking Connectivity to the Remote Server for more information.

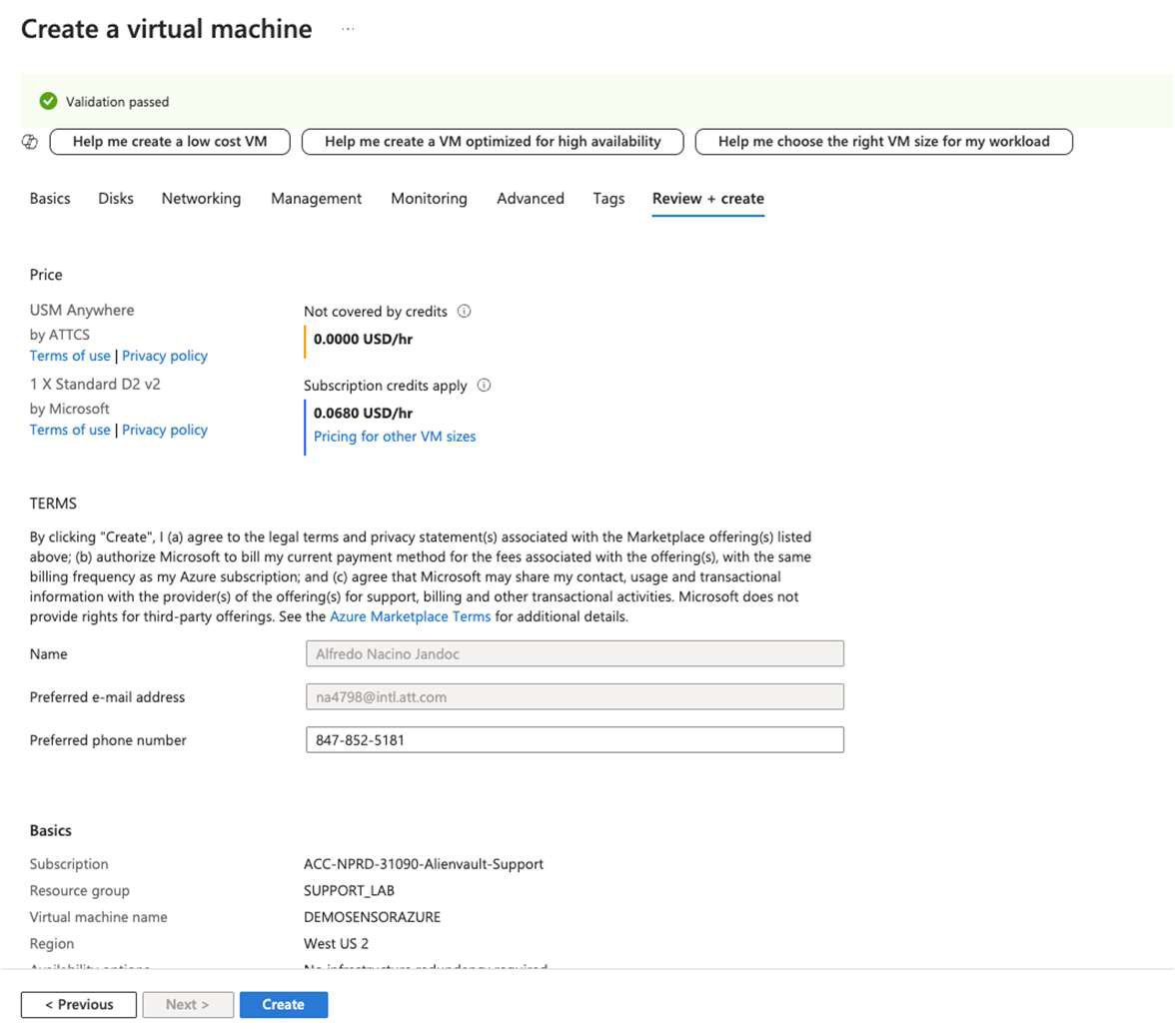

4. Complete the creation by selecting Create. The new sensor will deploy with a different temporary IP address.

​

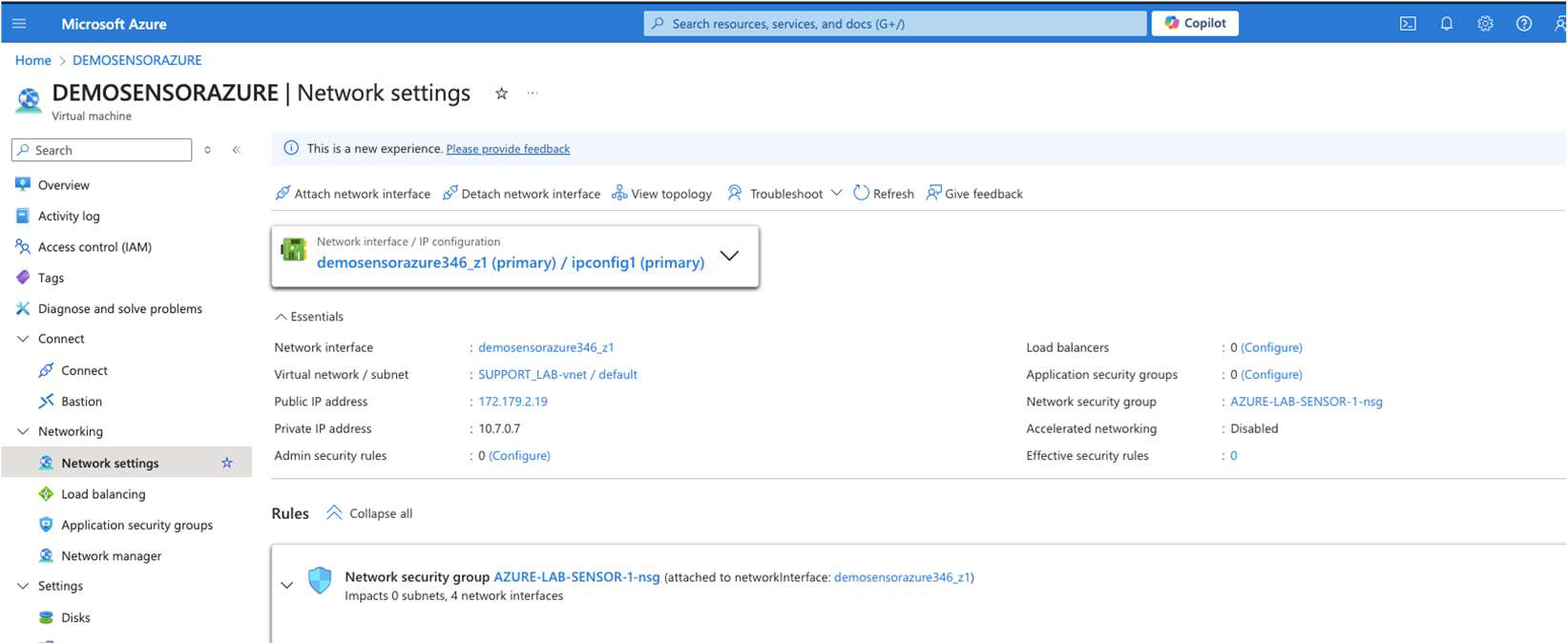

Step 5. Stop the New Sensor VM and Swap the Network Interface

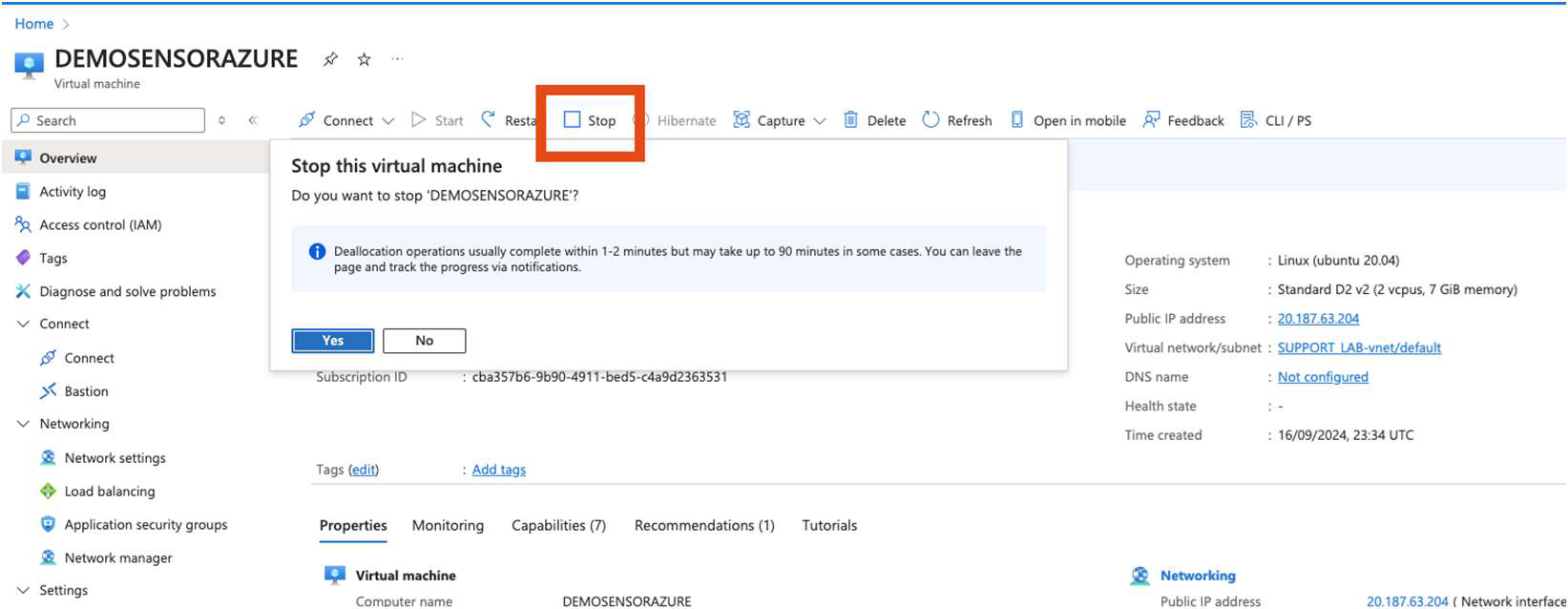

1. In the Azure Portal, go to the new sensor VM and select Stop to deallocate it.

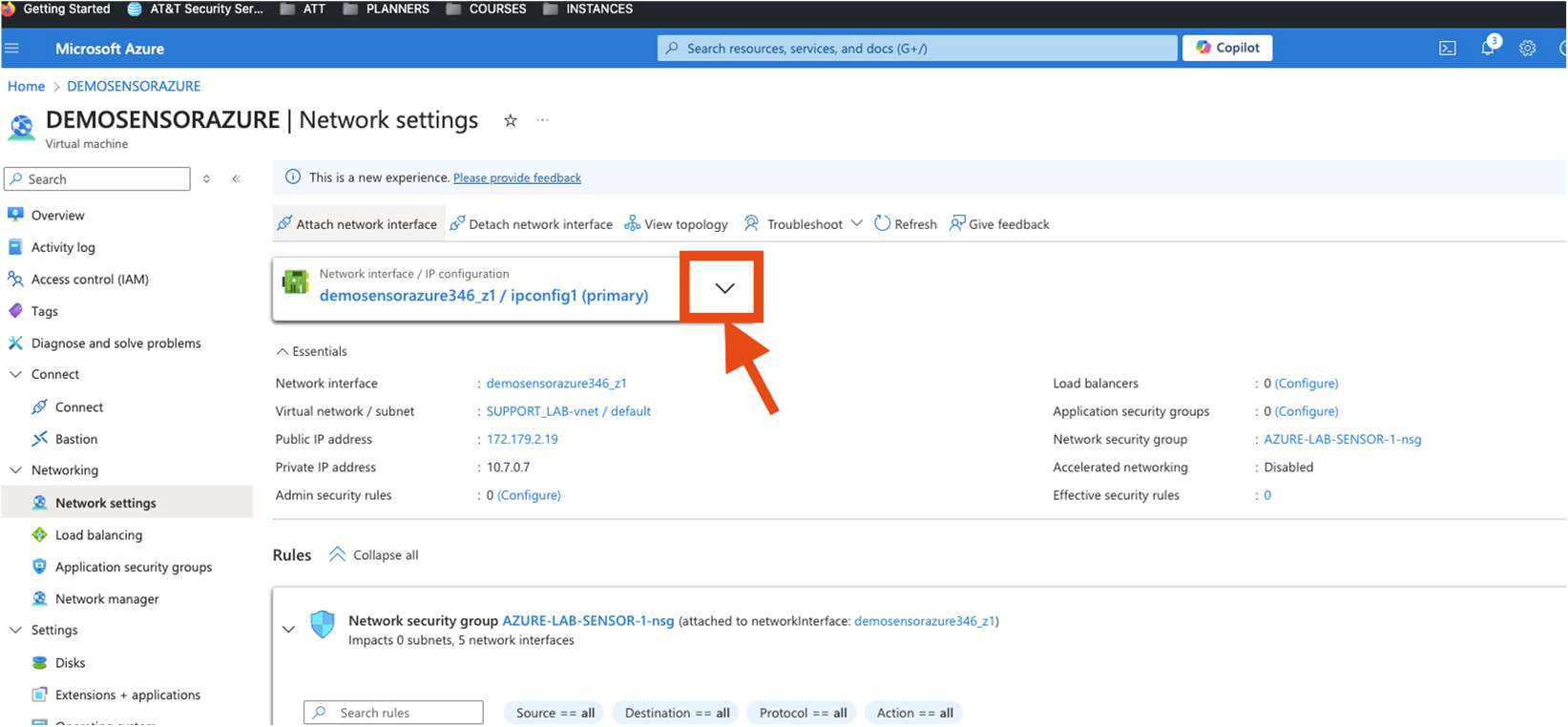

2. From the resource list, select the original NIC that retains the old IP address.

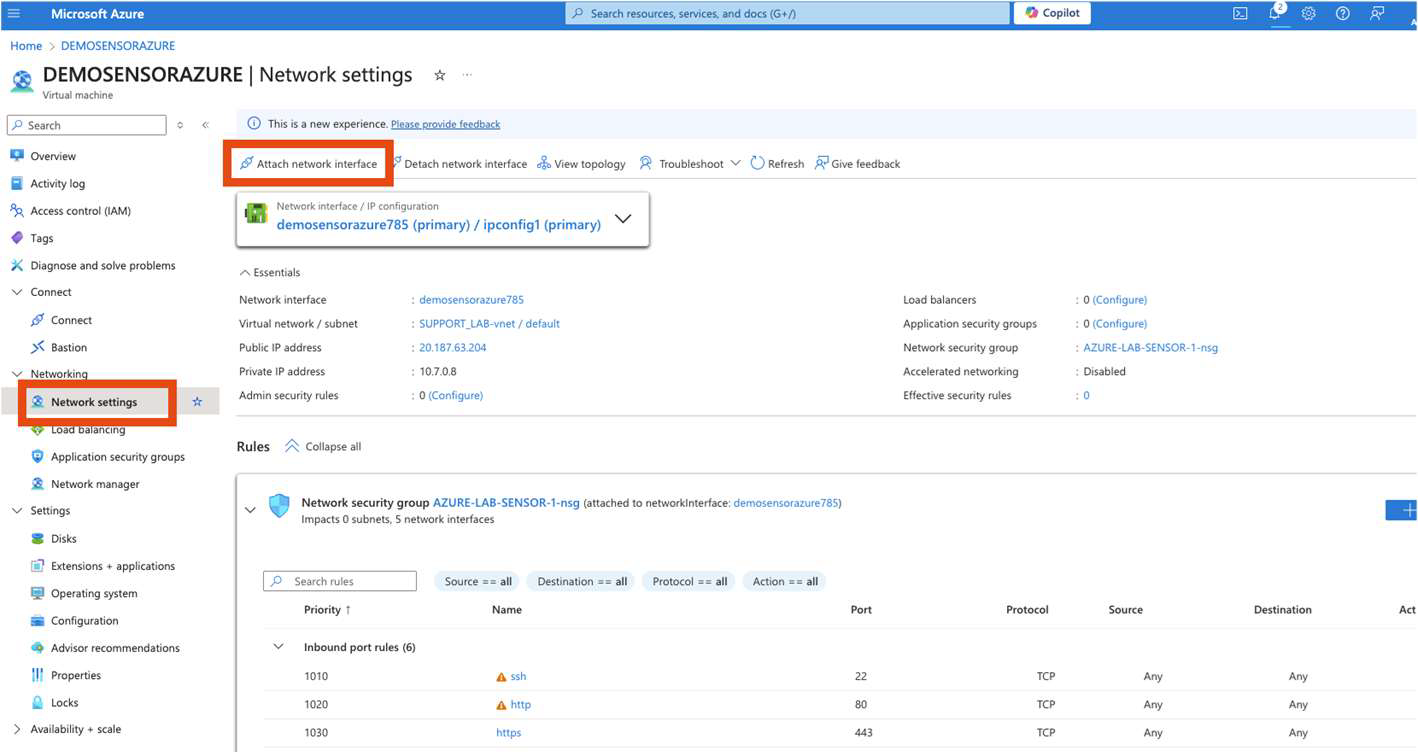

3. Attach this preserved NIC to the new VM as Primary.
4. Open the Networking blade for the new VM and detach its temporary NIC.
5. Start the VM again.

​

Step 6. Restore Sensor Backup

1. Open your virtualization management console and connect to the USM Anywhere Sensor virtual machine (VM).
   Important: Alternatively, you can open an SSH session to the sensor VM. When using an SSH session, the default username is sysadmin.If you are accessing a USM Sensor through SSH and you specified a username other than the default (sysadmin) for your SSH access, you must use the following commands at the command line to “sudo up” and access the sensor console:

   Report incorrect code

   Copy

   Ask AI

   # sudo su – sysadmin


2. From the USM Anywhere Sensor console System Menu, select Maintenance and press Enter.
3. From the Maintenance menu, select Restore Backup and press Enter.
4. Enter the FQDN and press Enter
5. Enter BackupID and press Enter. A progress bar will appear. Once it has completed, a dialog box confirming changes have been applied will appear.
6. Press Enter. Your sensor will now be restored.

​

Step 7. Verify Connectivity and Log Ingestion

1. In USM Anywhere, confirm the redeployed sensor shows Connected status.
2. Check that events and alarms are appearing normally.
3. Verify that the sensor is forwarding logs and communicating with BlueApps and integrations as expected.

​
